I just released Arrow Indicator, a free and open source Qlik Sense extension to drop clean, scalable SVG arrows directly onto a sheet.

It's useful for status indicators, flow diagrams, navigation hints, dashboard storytelling, or any moment you need a decorative arrow that stays sharp at any size.

What it does

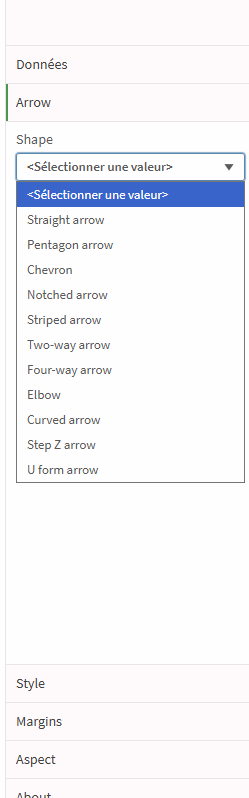

  • 11 arrow shapes Straight, pentagon, chevron, notched, striped, two-way, four-way, elbow, curved, step (Z), and U-turn.
  • Multiple orientations per shape
  • Filled or outlined
  • Adjustable geometry Sliders for body thickness, head length, head width, and corner radius.
  • Margins on each side
  • Sharp rendering SVG
  • No data needed (no measure or dimension required)

Installation

Qlik Sense Desktop

  • Download or clone the repository from GitHub
  • Copy the ArrowIndicator/ folder to :

C:\Users<YOUR_USER>\Documents\Qlik\Sense\Extensions\ArrowIndicator

  • Refresh your Qlik Sense application

Qlik Sense Server or Qlik Cloud

  1. Download the .zip from the GitHub release
  2. Open the Qlik Management Console
  3. Navigate to Extensions => Import
  4. Upload the .zip file

Compatibility

Platform Status
Qlik Sense Desktop ✅
Qlik Sense Enterprise on Windows ✅
Qlik Sense SaaS ✅

Source code & download

Arrow Indicator is open source, so feel free to edit it as you want. Let me know if any adjustment or improvement could be made so everyone can benefit from it.

==> GitHub - qs_arrowIndicator

If you use it or have feedback, please let me know in the comments or on LinkedIn.
